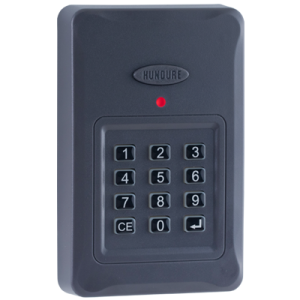

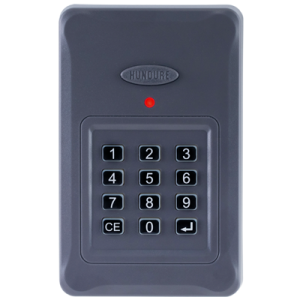

RAC-520 Series
Standalone Access Controller
- Provide RS-485 communication, able expandable to 64 sets by RS-485 interface.
- Supports network or standalone operation.
- Support swipe card and card with pin codes enter modes and door relay time from 1~600 seconds.
- Conditional Unlock Door function, able open 1~9,999 seconds per time.
Feature：
?
- Watchdog function secures system free from halting.
- Supports network or standalone operation.
- Conditional Unlock Door function, able open 1~9,999 seconds per time.
- Unique ID or Block read format supported. (RAC-520PM)
- Provide RS-485 communication, able expandable to 64 sets by RS-485 interface.
- Support swipe card and card with pin codes enter modes and door relay time from 1~600 seconds.
- Duress card/code setting. When door opened in the emergency, controller will send signal to control center at the same time for tracing and rescue.
- Casing tamper proof detection and door tamper alarm. Programmable door sensor detection time from 1~600 seconds and able set relay or reader beep of alarm type.
- Able to connect external slave reader type T1/T2.
- Support Anti-Passback function.
Specification：
| Read Format | EM (125 KHz)? or MIFARE? (13.56 MHz) |
| Slave Reader | T2 (1 set) |
| Input Ports | 3 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 1) |
| Output Ports (Built-in) | Relay x 1 (Door Lock) |
| Output Ports (External) | O.C. Output x 2 (Door Lock / Alarm, external ACU-30) |
| Cardholders / Events | 1,024 / 800 |
| ID setting? | DIP switch setting |
| Power Input | DC 12V / 1A? |
| Current Consumption | 250mA (max.) |
| Comm. Interface | RS-485 |
| Operating Temp. | -10° C~70° C / 14° F ~ 158° F |
| Relative Humidity | 20% ~ 80% (Non-condensing) |
| Dimension | 120mm(L) x 76mm(W) x 23mm(H) |
Product?Information：
| Model | Description | Downloads |
| RAC-520PE | EM (125 KHz) standalone access controller |  |
| RAC-520PM | MIFARE? (13.56 MHz) standalone access controller | |
Related Resources：
| Resource | Model | Downloads |
| Quick Start Guide | RAC-520 Series | |
